rovsoft::io::DeviceContainer Class Reference

Abstract class defining the general interface for all device containers. More...

#include <DeviceContainer.hh>

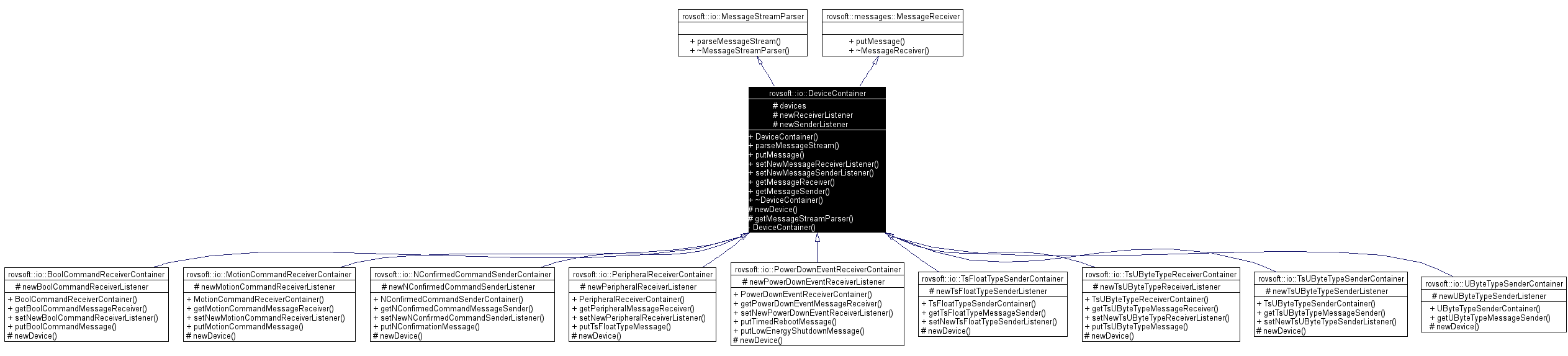

Inheritance diagram for rovsoft::io::DeviceContainer:

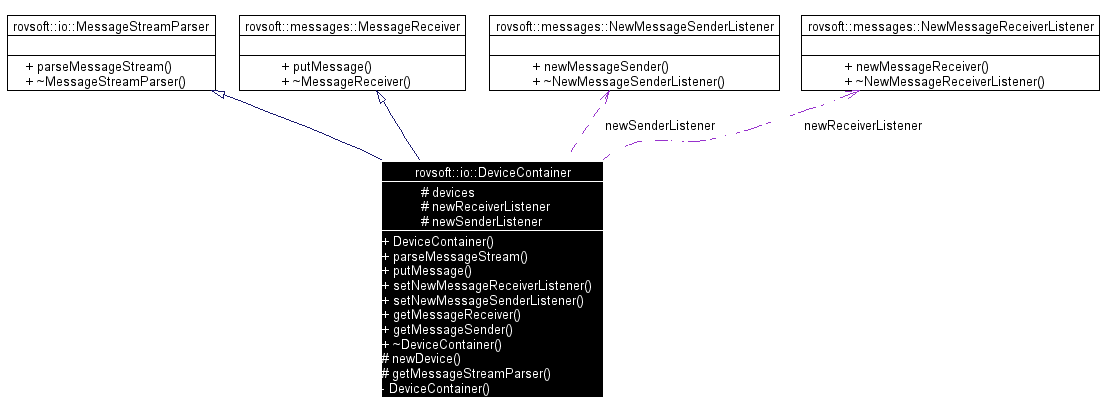

[legend]Collaboration diagram for rovsoft::io::DeviceContainer:

[legend]List of all members.

Public Member Functions
	DeviceContainer (messages::NewMessageReceiverListener *rListener=0, messages::NewMessageSenderListener *sListener=0)
	Construct a device container with specified listeners, which should receive events about newly created devices.
virtual void	parseMessageStream (unsigned short sa, unsigned short da, IStreamer &stream, messages::MessageReceiver *out=0) throw (lib::ExceptionPtr)
	This method forwards the streamer to the device specified with sa and creates it if it didn't exist.
virtual void	putMessage (const messages::MessagePtr message) throw (ReadOnlyExceptionPtr, lib::OutOfRangeExceptionPtr, lib::NullPointerExceptionPtr)
	Input from rovsoft.
void	setNewMessageReceiverListener (messages::NewMessageReceiverListener *listener)
	Set a new Listener for new receiver devices.
void	setNewMessageSenderListener (messages::NewMessageSenderListener *listener)
	Set a new listener that will be informed about new message sender devices being created.
messages::MessageReceiver &	getMessageReceiver (unsigned char index) throw (ReadOnlyExceptionPtr, lib::NullPointerExceptionPtr, lib::OutOfRangeExceptionPtr)
	Gets the MessageReceiver device specified with index.
messages::MessageSenderInterface &	getMessageSender (unsigned char index) throw (WriteOnlyExceptionPtr, lib::NullPointerExceptionPtr, lib::OutOfRangeExceptionPtr)
	Gets the MessageSender device specified with index.
virtual	~DeviceContainer ()
Protected Member Functions
virtual void	newDevice (MessageStreamParser *&obj, messages::MessageReceiver *interface)=0
	Must be overridden by daughter classes, so that parseMessageStream can work.
MessageStreamParser *	getMessageStreamParser (unsigned char index) throw (lib::OutOfRangeExceptionPtr)
	Gets a device from the devices vector.
Protected Attributes
std::vector< MessageStreamParser * >	devices
	The mapping sa to device, is done via the index of the vector, to the vector element, just because of performance.
messages::NewMessageReceiverListener *	newReceiverListener
messages::NewMessageSenderListener *	newSenderListener

---

Detailed Description

Abstract class defining the general interface for all device containers.

---

Constructor & Destructor Documentation

rovsoft::io::DeviceContainer::DeviceContainer (  messages::NewMessageReceiverListener *  rListener = 0, messages::NewMessageSenderListener *  sListener = 0 )  [inline]

Construct a device container with specified listeners, which should receive events about newly created devices. Parameters: rListener  an object that should be informed about newly created message receiver devices. sListener  an object that should be informed about newly created message sender devices.

rovsoft::io::DeviceContainer::~DeviceContainer (   )  [virtual]

---

Member Function Documentation

messages::MessageReceiver & rovsoft::io::DeviceContainer::getMessageReceiver (  unsigned char  index  )  throw (ReadOnlyExceptionPtr, lib::NullPointerExceptionPtr, lib::OutOfRangeExceptionPtr)

Gets the MessageReceiver device specified with index. You should not store the returned reference permanentely in a pointer, because its target could become invalid! Parameters: index  of the device that should be returned. Exceptions: ReadOnlyExceptionPtr  if the device does not support writting. lib::NullPointerExceptionPtr  if the target exists but is a NullPointer lib::OutOfRangeExceptionPtr  if the desired index is not available.

messages::MessageSenderInterface & rovsoft::io::DeviceContainer::getMessageSender (  unsigned char  index  )  throw (WriteOnlyExceptionPtr, lib::NullPointerExceptionPtr, lib::OutOfRangeExceptionPtr)

Gets the MessageSender device specified with index. You should not store the returned reference permanentely in a pointer, because its target could become invalid! Parameters: index  of the device that should be returned. Exceptions: WriteOnlyExceptionPtr  if the device does not support reading. lib::NullPointerExceptionPtr  if the target exists but is a NullPointer lib::OutOfRangeExceptionPtr  if the desired index is not available.

MessageStreamParser * rovsoft::io::DeviceContainer::getMessageStreamParser (  unsigned char  index  )  throw (lib::OutOfRangeExceptionPtr) [protected]

Gets a device from the devices vector.

virtual void rovsoft::io::DeviceContainer::newDevice (  MessageStreamParser *&  obj, messages::MessageReceiver *  interface )  [protected, pure virtual]

Must be overridden by daughter classes, so that parseMessageStream can work. Should return a pointer to a newly created object. Parameters: obj  This Method should store its newly created object in this reference, a return is not used, because this method should inform any NewXXXDeviceListeners, just after the insertion into the array! interface  the interface used by receiver devices for sending messages to their interface. Implemented in rovsoft::io::BoolCommandReceiverContainer, rovsoft::io::MotionCommandReceiverContainer, rovsoft::io::NConfirmedCommandSenderContainer, rovsoft::io::PeripheralReceiverContainer, rovsoft::io::PowerDownEventReceiverContainer, rovsoft::io::TsFloatTypeSenderContainer, rovsoft::io::TsUByteTypeReceiverContainer, and rovsoft::io::TsUByteTypeSenderContainer.

void rovsoft::io::DeviceContainer::parseMessageStream (  unsigned short  sa, unsigned short  da, IStreamer &  stream, messages::MessageReceiver *  out = 0 )  throw (lib::ExceptionPtr) [virtual]

This method forwards the streamer to the device specified with sa and creates it if it didn't exist. When the creation of a device was neccessary it reports this to the specified listeners. Implements rovsoft::io::MessageStreamParser. Here is the call graph for this function:

void rovsoft::io::DeviceContainer::putMessage (  const messages::MessagePtr  message  )  throw (ReadOnlyExceptionPtr, lib::OutOfRangeExceptionPtr, lib::NullPointerExceptionPtr) [virtual]

Input from rovsoft. Exceptions: ReadOnlyExceptionPtr  if the device is a read only device- so it is not possible to write it a message. lib::OutOfRangeExceptionPtr  if the device to which the message should be sent, does not exist. lib::NullPointerExceptionPtr  if the index of the device exists, but it is a null pointer. Implements rovsoft::messages::MessageReceiver.

void rovsoft::io::DeviceContainer::setNewMessageReceiverListener (  messages::NewMessageReceiverListener *  listener  )  [inline]

Set a new Listener for new receiver devices. Parameters: listener  a listener that will be informed about new receiver devices being created. The null pointer is allowed.

void rovsoft::io::DeviceContainer::setNewMessageSenderListener (  messages::NewMessageSenderListener *  listener  )  [inline]

Set a new listener that will be informed about new message sender devices being created. Parameters: listener  the object that gets informed about new devices. The null pointer is allowed.

---

Member Data Documentation

std::vector<MessageStreamParser* > rovsoft::io::DeviceContainer::devices [protected]

The mapping sa to device, is done via the index of the vector, to the vector element, just because of performance. A dictionary would be better if there were big holes between the elements, for not wasting too much memory.

messages::NewMessageReceiverListener* rovsoft::io::DeviceContainer::newReceiverListener [protected]

messages::NewMessageSenderListener* rovsoft::io::DeviceContainer::newSenderListener [protected]

---

The documentation for this class was generated from the following files:

• DeviceContainer.hh
• DeviceContainer.cc

---
