rovsoft::messages::FloatFloatTypeMessage Class Reference

Base class for messages with a data part of two floats. More...

#include <FloatFloatTypeMessage.hh>

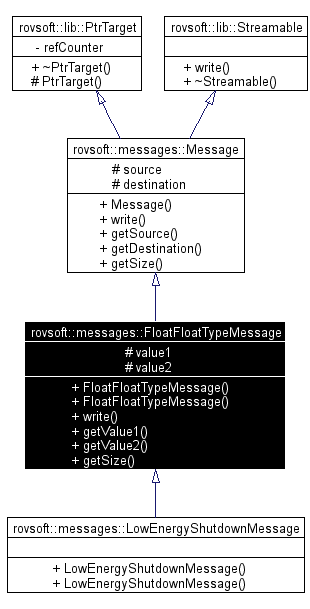

Inheritance diagram for rovsoft::messages::FloatFloatTypeMessage:

[legend]Collaboration diagram for rovsoft::messages::FloatFloatTypeMessage:

[legend]List of all members.

Public Member Functions
	FloatFloatTypeMessage (unsigned short sa, unsigned short da, float val1, float val2)
	Constructs a new Float Float Type message.
	FloatFloatTypeMessage (unsigned short sa, unsigned short da, io::IStreamer &in) throw (io::IOExceptionPtr)
	Constructs a new Short Type message, by reading its value from the stream in.
virtual void	write (io::OStreamer &out) const throw (io::IOExceptionPtr)
	Writes this message to a stream.
float	getValue1 () const
	Get the value of this message (first part).
float	getValue2 () const
	Get the value of this message (second part).
virtual int	getSize () const
	Returns the size of the message = the number of bytes that would be written by write.
Protected Attributes
float	value1
float	value2

---

Detailed Description

Base class for messages with a data part of two floats.

---

Constructor & Destructor Documentation

rovsoft::messages::FloatFloatTypeMessage::FloatFloatTypeMessage (  unsigned short  sa, unsigned short  da, float  val1, float  val2 )  [inline]

Constructs a new Float Float Type message. Parameters: sa  The sender of this message. da  The receiver of this message. val1  the value of this message. (first) val2  the value of this message. (first)

rovsoft::messages::FloatFloatTypeMessage::FloatFloatTypeMessage (  unsigned short  sa, unsigned short  da, io::IStreamer &  in )  throw (io::IOExceptionPtr) [inline]

Constructs a new Short Type message, by reading its value from the stream in. Parameters: sa  The sender of this message. da  The receiver of this message. in  The stream from which this message should be build.

---

Member Function Documentation

int rovsoft::messages::FloatFloatTypeMessage::getSize (   )  const [virtual]

Returns the size of the message = the number of bytes that would be written by write. (SA and DA are not included!) Reimplemented from rovsoft::messages::Message. Here is the call graph for this function:

float rovsoft::messages::FloatFloatTypeMessage::getValue1 (   )  const [inline]

Get the value of this message (first part).

float rovsoft::messages::FloatFloatTypeMessage::getValue2 (   )  const [inline]

Get the value of this message (second part).

void rovsoft::messages::FloatFloatTypeMessage::write (  io::OStreamer &  out  )  const throw (io::IOExceptionPtr) [virtual]

Writes this message to a stream. SA and DA are not written!! Reimplemented from rovsoft::messages::Message. Here is the call graph for this function:

---

Member Data Documentation

float rovsoft::messages::FloatFloatTypeMessage::value1 [protected]

float rovsoft::messages::FloatFloatTypeMessage::value2 [protected]

---

The documentation for this class was generated from the following files:

• FloatFloatTypeMessage.hh
• FloatFloatTypeMessage.cc

---
