rovsoft::io::Receiver Class Reference

This is the base class for all receiver devices in the device manager. More...

#include <Receiver.hh>

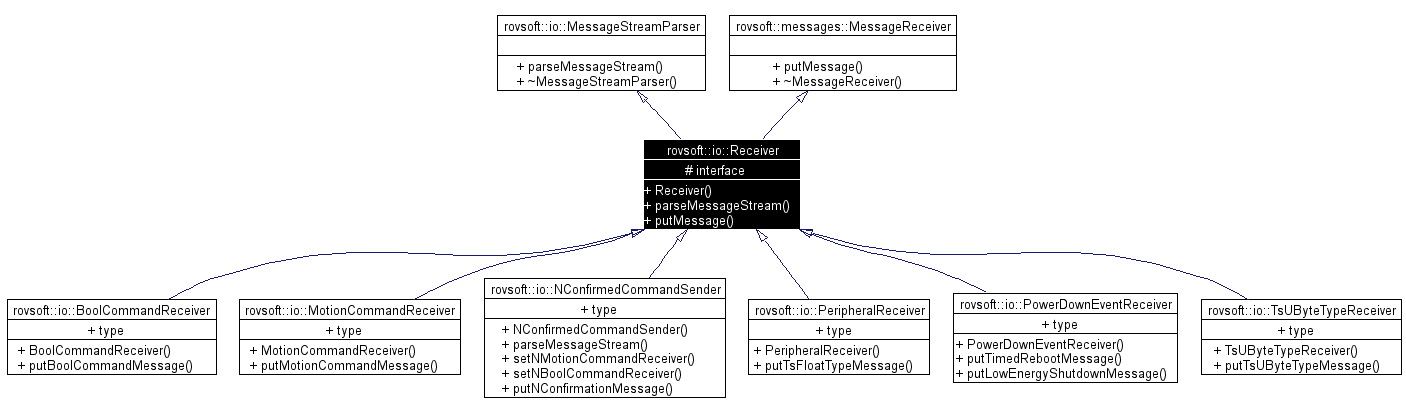

Inheritance diagram for rovsoft::io::Receiver:

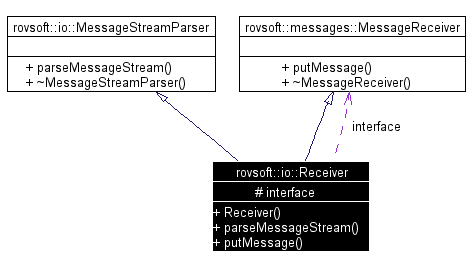

[legend]Collaboration diagram for rovsoft::io::Receiver:

[legend]List of all members.

Public Member Functions
	Receiver (messages::MessageReceiver *out=0)
	Construct a Receiver.
virtual void	parseMessageStream (unsigned short sa, unsigned short da, IStreamer &stream, messages::MessageReceiver *out=0) throw (lib::ExceptionPtr)
	This method tries to read the data part of a message from the stream specified by stream.
virtual void	putMessage (messages::MessagePtr message) throw (lib::ExceptionPtr)
	Put a message to this device.
Protected Attributes
messages::MessageReceiver *	interface
	The interface to which this device is connected to.

---

Detailed Description

This is the base class for all receiver devices in the device manager.

It implements basic methods, that are equal in all receiver devices.

---

Constructor & Destructor Documentation

rovsoft::io::Receiver::Receiver (  messages::MessageReceiver *  out = 0  )  [inline]

Construct a Receiver. Parameters: out  The interface to which this receiver will send its messages.

---

Member Function Documentation

void rovsoft::io::Receiver::parseMessageStream (  unsigned short  sa, unsigned short  da, IStreamer &  stream, messages::MessageReceiver *  out = 0 )  throw (lib::ExceptionPtr) [virtual]

This method tries to read the data part of a message from the stream specified by stream. Parameters: sa  The source address of the message being read. da  The destination address of the message being read. stream  The stream to read the data part of the message from. out  The messageReceiver that will be used for writing messages to the destination specified by sa! (reply) Exceptions: Exception  throws any exception that occur while reading from stream. Implements rovsoft::io::MessageStreamParser. Reimplemented in rovsoft::io::NConfirmedCommandSender. Here is the call graph for this function:

void rovsoft::io::Receiver::putMessage (  messages::MessagePtr  message  )  throw (lib::ExceptionPtr) [virtual]

Put a message to this device. Implements rovsoft::messages::MessageReceiver. Here is the call graph for this function:

---

Member Data Documentation

messages::MessageReceiver* rovsoft::io::Receiver::interface [protected]

The interface to which this device is connected to.

---

The documentation for this class was generated from the following files:

• Receiver.hh
• Receiver.cc

---
